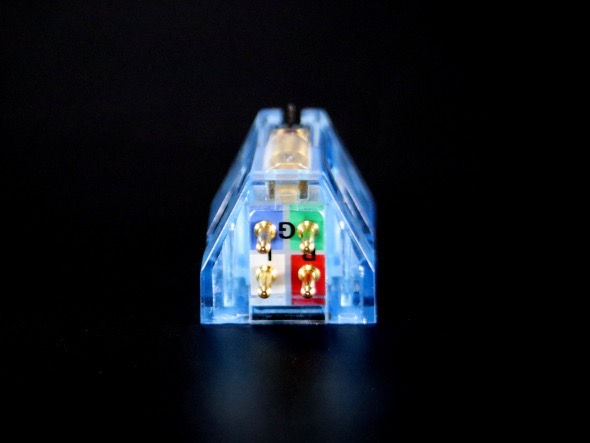

ZYX R50 Exceed Bloom
€1,000.00Price
Technical Data HO:High output Model
Type Moving Coil (Dynamic)
“REAL STEREO” Generator SystemCryogenic Treatment Temperature: -196 ℃ (-320оF) Coil Wire 6N OFCφ0.035mm Output Voltage 0.24mV (HO:0.48mV) (3.54cm/sec, 1kHz) Frequency Response
±1dB10 Hz - 100 kHz
20 Hz - 20 kHzChannel Separation ＞ 30dB 〔 1kHz 〕 Channel Balance ＜ 0.5dB 〔 1kHz 〕 Recommended Tracking Force 2.0gm 〔 20 ゜C-25 ゜C 〕 Tracking Force Range 1.7gm - 2.5gm Trackability ＞60μm /2.0gm EQ Compliance horizontal vertical 15×10-6cm/dyne
12×10-6cm/dyneInternal Impedance 4.0 Ω (HO:8.0 Ω) Load Impedance ＞ 100Ω Cantilever Material Black ALMg5 tube φ0.45×φ0.30mm Stylus Line-contact Solid Diamond □0.1mm Contact Radius, Life Time 6μm×35μm, 2000Hour/2.0gm Output Terminals φ1.25mm gold plated〔EIA〕 Terminal Board Glass Epoxy Plate Dimensions 16.2mm(W)×19.7mm(L)×x17.6mm(H) Net Weight 5.0gm, 7.7gm(TB), 9.5gm(SB)
